How ARC Works

ARC is organized around a small set of core objects and a scheduler that turns chemical intent into electronic structure jobs. This page gives the system map: what happens after ARC reads an input file, which objects own which data, and where outputs come from.

High-Level Workflow

An ARC run follows this general path:

1. Read an input.yml or restart file.

2. Build an ARC project object.

3. Convert species entries into ARCSpecies objects.

4. Convert reactions entries into ARCReaction objects.

5. Resolve levels of theory, job types, ESS routing, and project directories.

6. Start the scheduler.

7. Generate conformers, TS guesses, rotor scans, and ESS jobs as requested.

8. Submit jobs locally or through SSH/scheduler adapters.

9. Parse completed outputs, troubleshoot failures, and update restart.yml.

10. Run statmech processing and write output libraries, plots, status files, and processed geometries.

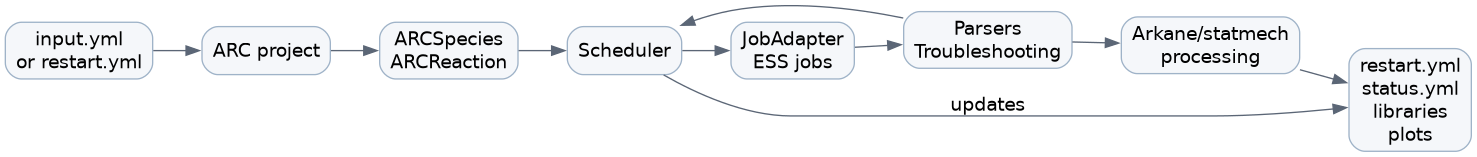

The main ARC run loop.

Core Objects

ARC

The project entry point. It owns user-facing project options such as project, species, reactions, job_types, levels of theory, ESS routing, statmech settings, resource settings, and restart state.

ARCSpecies

The species representation. It stores labels, graph representations, charge/multiplicity, XYZ data, conformers, rotor information, thermo data, TS metadata, BDE requests, and output-related state.

ARCReaction

The reaction representation. It stores reactant/product labels or species objects, atom mapping state, reaction charge/multiplicity, TS guesses, TS labels, family information, and kinetics data.

Scheduler

The central job orchestrator. It decides which jobs are needed, creates job adapters, submits jobs, polls job status, parses results, applies troubleshooting, and advances species/reaction state.

Level

The level-of-theory representation. It normalizes method, basis, ESS, auxiliary basis, F12 CABS, solvation, arguments, and Arkane correction-year metadata.

Job Lifecycle

Most ESS jobs move through the same lifecycle:

1. ARC determines that a job type is needed for a species, TS, reaction, rotor, or conformer.

2. The scheduler calls the job factory to create the correct adapter.

3. The adapter writes an ESS input file and a submit script.

4. ARC submits the job through the configured local or SSH execution path.

5. The scheduler periodically checks job status.

6. When the job finishes, ARC parses geometry, energy, frequencies, scan data, or other output as appropriate.

7. If the job failed and troubleshooting is enabled, ARC classifies the failure, modifies settings or input, and resubmits when a recovery path exists.

8. ARC updates output state and restart.yml so the project can continue after interruption.

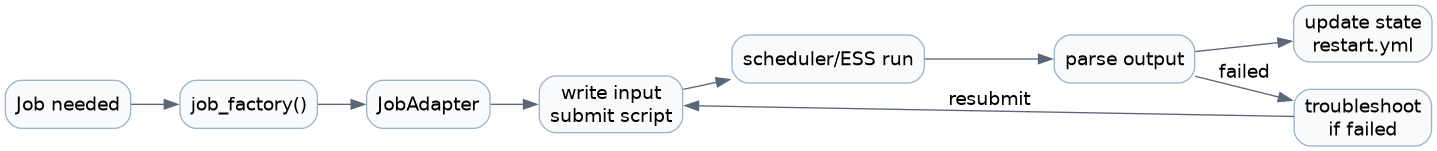

A typical ESS job lifecycle.

Execution Paths

ARC distinguishes where it runs from where ESS jobs run:

local

The reserved server name for jobs submitted from the same host or login environment where ARC is running. This still normally uses a scheduler such as Slurm, OGE/SGE, PBS, or HTCondor.

Remote SSH server

ARC connects to a configured SSH host, writes project/job files remotely, submits jobs through that host’s scheduler, and downloads outputs for parsing.

Pipe mode

An opt-in execution path for large homogeneous HPC batches. It stages many ready tasks into a shared task directory and uses scheduler array workers to claim and execute tasks.

Data Flow

The most common data path is:

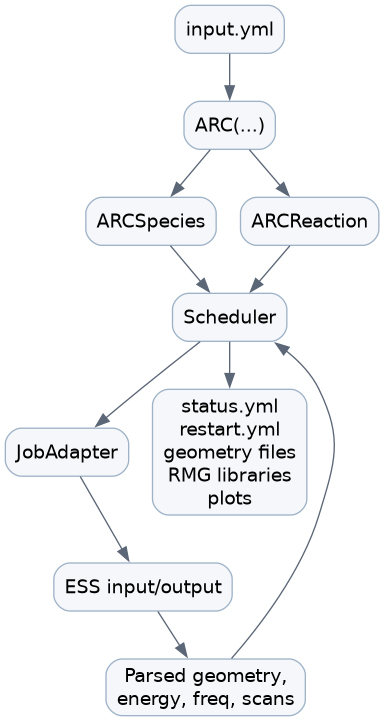

Data flow from user input to processed outputs.

Restart files are not a separate format. They are expanded ARC input files that also include accumulated state such as running jobs, output paths, and parsed results.

Important Data Structures

XYZ dictionary

ARC’s internal Cartesian coordinate format. It contains symbols, isotopes, and coords tuples. Most coordinate strings and files are normalized into this structure.

Template:

xyz = {
    'symbols': ('C', 'O', 'H', 'H', 'H', 'H'),
    'isotopes': (12, 16, 1, 1, 1, 1),
    'coords': (
        (0.000000, 0.000000, 0.000000),
        (1.420000, 0.000000, 0.000000),
        (-0.540000, 0.935000, 0.000000),
        (-0.540000, -0.467000, 0.809000),
        (-0.540000, -0.467000, -0.809000),
        (1.780000, 0.000000, 0.960000),
    ),
}

Z-matrix dictionary

Internal-coordinate representation used by geometry and rotor workflows. It stores symbols, coordinate parameter names, parameter values, and atom maps.

Template:

zmat = {
    'symbols': ('C', 'O', 'H'),
    'coords': (
        (None, None, None),
        ('R_1_0', None, None),
        ('R_2_0', 'A_2_0_1', None),
    ),
    'vars': {
        'R_1_0': 1.42,
        'R_2_0': 1.09,
        'A_2_0_1': 109.5,
    },
    'map': {0: 0, 1: 1, 2: 2},
}

Conformer dictionaries

Candidate conformers contain an XYZ dictionary plus metadata such as source, index, force-field energy, torsion information, chirality information, and distance-matrix data where relevant.

Template:

conformer = {
    'xyz': xyz,
    'index': 0,
    'FF energy': 0.0,
    'source': 'RDKit',
    'torsion_dihedrals': {(1, 2, 3, 4): 180.0},
    'chirality': {},
    'dmat': None,
}

Rotor dictionaries

Species rotor information is stored by rotor index. Entries include pivots, tops, scan definitions, torsions, scan paths, invalidation reasons, symmetry, and scan results.

Template:

rotors_dict = {
    0: {
        'pivots': [1, 2],
        'top': [2, 3, 4],
        'scan': [1, 2, 3, 4],
        'torsion': [0, 1, 2, 3],
        'success': None,
        'invalidation_reason': '',
        'scan_path': '/path/to/scan/output.out',
        'max_e': None,
        'trsh_counter': 0,
        'trsh_methods': [],
        'symmetry': None,
        'dimensions': 1,
        'directed_scan': {},
    },
}

Status dictionaries

ARC writes structured status information for species, TSs, reactions, job convergence, paths, warnings, and errors so users can inspect project state without reading every output file.

Representative output/status.yml shape:

species:
  ethanol:
    converged: true
    isomorphism: true
    paths:
      geo: /path/to/output/Species/ethanol/geometry/ethanol.xyz
      freq: /path/to/calcs/Species/ethanol/freq_a123/output.out
    warnings: []
    errors: []
reactions:
  ethanol + OH <=> products:
    converged: false
    warnings:
      - TS search incomplete

Job dictionaries

The scheduler tracks active and completed jobs by species/reaction label and job type. This is the state that lets ARC restart after interruption.

Simplified shape:

job_dict = {
    'ethanol': {
        'conf_opt': {0: '<JobAdapter>'},
        'opt': {'opt_a123': '<JobAdapter>'},
        'freq': {'freq_a124': '<JobAdapter>'},
        'sp': {'sp_a125': '<JobAdapter>'},
    },
}

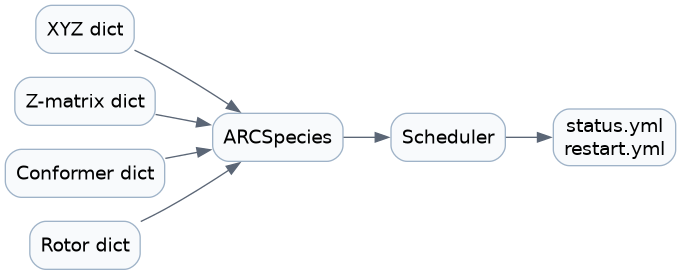

Common ARC data structures and where they are used.

Where Files Are Written

Local project outputs are written under project_directory. If no explicit directory is given, command-line runs use the input file directory and API runs default to ARC/Projects/<project>.

Inside a project, the key paths are:

• arc.log - human-readable execution log.

• restart.yml - restartable ARC state.

• calcs/ - job inputs, submit scripts, raw ESS outputs, and auxiliary files.

• output/status.yml - project status summary.

• output/Species - processed species outputs and geometries.

• output/rxns - processed reaction outputs.

• output/RMG libraries - thermo and kinetics libraries when generated.

Remote jobs use project directories on the selected server. The optional path key in a server definition controls the base path for remote project storage.

Extension Points

ARC is intentionally adapter-driven:

• ESS support lives in job adapters.

• Parser support lives in parser adapters and parser helpers.

• TS search methods are registered adapters.

• Statmech processing is selected through statmech adapters.

• Site-specific scheduler and submit behavior is configured in settings.py and submit.py overrides.

For normal users, these extension points mostly appear as input/settings choices. For developers, they are the places to add new ESS integrations, TS generation methods, statmech backends, or scheduler behavior.
